Lab 2.5 - Creating an APM Policy - LDAP

PUA requires a Directory Service to authenticate users. In this section you will build an LDAP macro to perform the authentication function.

Task - Build an LDAP macro

Note

This lab makes use of APM macros to make policies easy to view and manage.

The LDAP macro will verify that the requesting user has a valid account and the appropriate group permission.

1. Click the Add New Macro button



2. Give the macro a name and click Save



3. Open the newly created macro by clicking the plus sign by the name: Macro: LDAP_Query



4. Modify the macro by clicking the plus sign

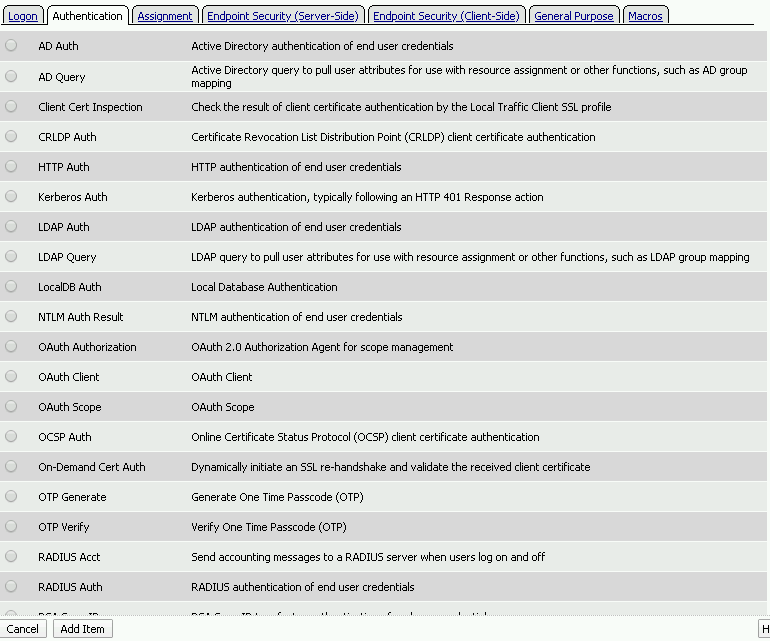

5. Select the Authentication tab, select the LDAP Query agent, and then click Add Item

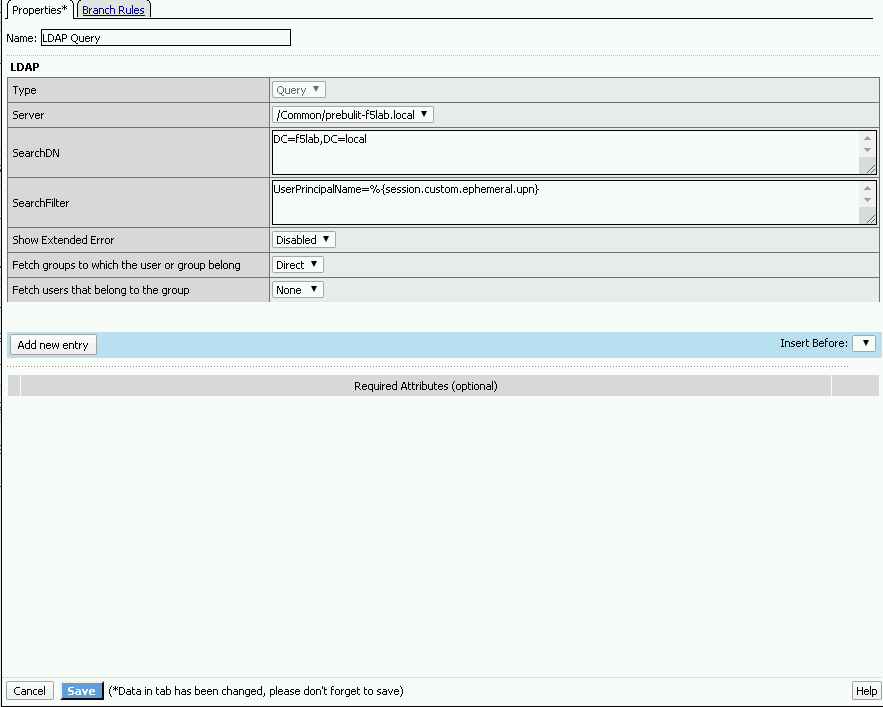

6. Update the Properties tab by modifying the Server, SearchDN, SearchFilter, and Fetch Groups settings

   • Server = /Common/prebuilt-f5lab.local
   • SearchDN = DC=f5lab,DC=local
   • SearchFilter = UserPrincipalName=%{session.custom.ephemeral.upn}
   • Fetch groups to which the user or group belong = Direct



7. Click on the Branch Rules tab. Next, delete the branch rule by clicking X button beside User Group Membership

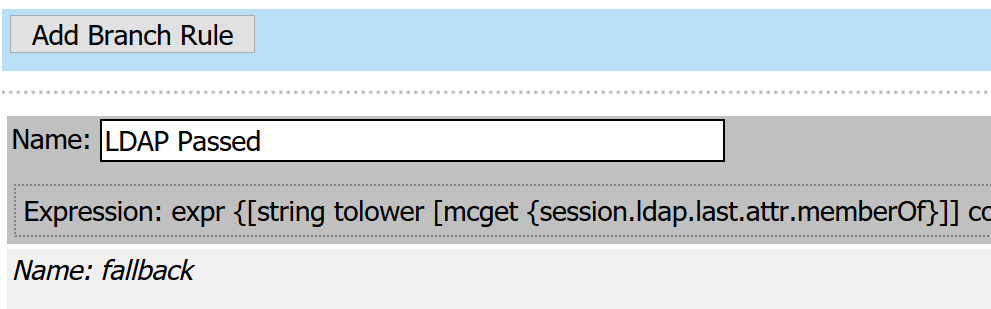

8. Click Add Branch Rule



9. Enter LDAP Passed in the Name field and click the Change link



10. Click the Add Expression button



11. Change the Context setting to LDAP Query and the Condition setting to LDAP Query Passed. Ensure that LDAP Query has is set to Passed. Then click Add Expression



12. Click Finish, and then click Save

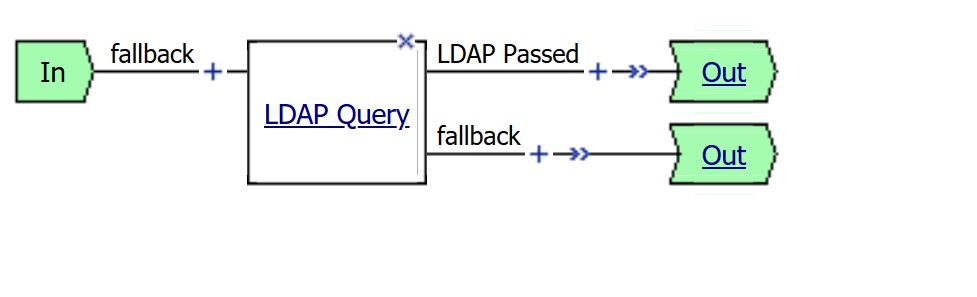

13. Now add a Message Box agent to alert when the LDAP query fails. Click on the plus sign on the fallback branch (between the LDAP Query and the Out terminal)

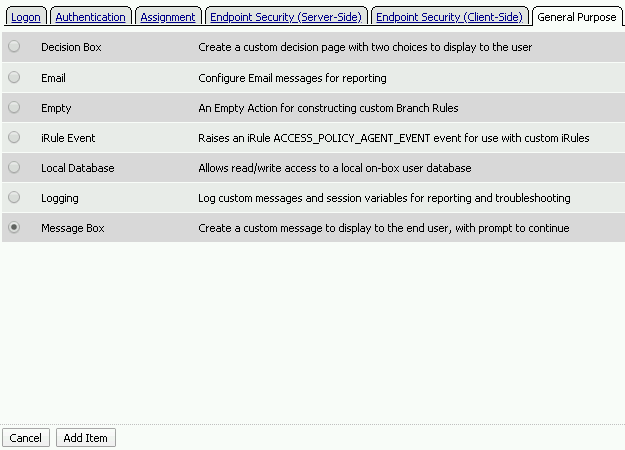

14. Select the General Purpose tab, then select Message Box in the main section, and click the Add Item button



15. Enter the following values for the message box agent, then click Save

    Name: LDAP Failure
    Message: LDAP Failure for user %{UserPrincipalName}




16. Click the Edit Terminals button to change the terminals to report Success and Failure



17. Change the Name from Out to Success, and then click the Add Terminal button



18. Change the name from Terminal 1 to Failure, and then click on Save



19. Click the Success terminal beside the LDAP Failure action branch



20. Change the setting from Success to Failure, and click Save



Note

Here is the completed macro.
