Lab 2.10 - Modifying Radius Configurations

Task - Modifying the Radius Server secret password

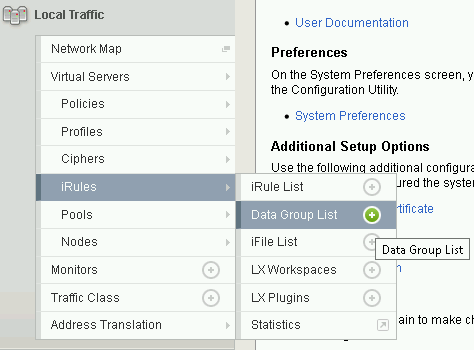

1. Naviage to Local Traffic >> iRules >> Data Group List



2. Click ephemeral_config



3. Change the Radius Secret

   • Highlight RADIUS_SECRET in the String Records window
   • Click Edit



4. Change the value from radius_secret to secret, click ADD, and then click Update



Task - Modifying the BIG-IP radius secret

1. SSH into the BIG-IP and enter traffic manangement shell by typing tmsh

2. Enter the following commands

   modify auth radius-server system_auth_name1 secret secret
   save sys config
